mage Analysis Electric Brinell Hardness Tester(HBE-3000IS)

mage Analysis Electric Brinell Hardness Tester(HBE-3000IS)

  • Min.Order Quantity: 1 Set
  • Supply Ability: 10 Sets per Month
  • Port: shanghai
  • Payment Terms: L/C,T/T
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:1995-09-08
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Place of Origin:  China
  • Brand Name:  SIOMM
  • Model Number:  HBE-3000IS

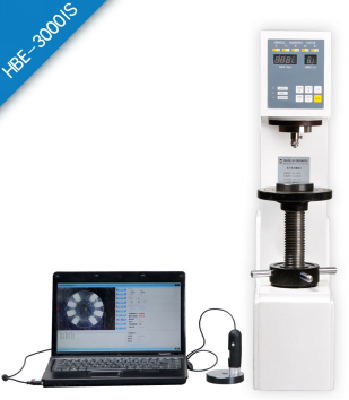

This system include the electric Brinell hardness tester and portable Brinell measurement software, and hardness indentation could be fast read to the computer by portable microscope; there only needed to use keyboards and mouse that can complete the test requirements, it is improve working efficiency, it is a perfect solution to test hardness value.


Main function and features of software:

  1. Image analysis software that researched by our institution, can be customized for kinds of functions, completed, handy operation and meet most customers’ demands.

  2. It can test Brinell hardness, easy to shift the dynamic and static measurement.

    3.  It can enlarge the indentation image measurement, and can be amplified again for diagonal part to avoid manual error.

    4.  It can automatic to identify the indentation image and measure the indentation diameter for bright and clear sample surface.

  3. Real time display the indentation diameter, hardness value, indentation depth, material strength, conversion hardness value etc.

  4. It possesses the unique mark positioning function, testing the positioned point hardness value.

    7.  It can be adjusted the color, gray, contrast ratio, lightness of the image.

    8.  Attached with function of indentation tangency fine tuning, length measurement and angle measurement etc..

  5.  It possesses the function of test result statistical analysis, automatic generation and export for the format of Word, Excel of hardness measurement analysis report, and save the indentation image, print etc..

  6. Support WIN8,WIN7,WINNT,WIN2000,WINXP,VISTA and so on operation system.


Main function and features:

  1. Equipped with sophisticated sensors and a microcomputer control system, dynamic force value fluctuation is less than 1/1000, test results are more accurate.

  2. It possesses the 10 grades test force, it can test 10 Brinell scales, with wider test range.

  3. Equipped with high performance of servo motor which automatically load/unloading, it cause the less noise when do test.

  4. The outer shell of machine is formed of special founding one-time casted technique, stable structure, it is not easy to be out of shape, can work under relatively harsh environment.

    5.  With pure white car painting and its class is high, have scratch resistance ability, it’s still brightness used for years.

    6.  This machine can connect to portable Brinell image software, improving the efficiency.






  • Place of Origin:  China
  • Brand Name:  SIOMM
  • Model Number:  HBE-3000IS


Technical parameters:

Model

HBE-3000IS

Brinell scale

HBW2.5/62.5,HBW2.5/187.5,HBW5/125,HBW5/750,HBW10/100,HBW10/250, HBW10/500,HBW10/1000,HBW10/1500,HBW10/3000

Conversion scale

HRC,HRA,HR15N,HR30N,HR45N,HV

Test force

62.5kgf(612.9N),100kgf (980.7N),125kgf (1226N),187.5kgf (1839N),250kgf (2452N),500kgf (4903N),750kgf (7355N),1000kgf (8907N),1500kgf (14710N),3000kgf (29420N)

Minimum measuring unit

0.00125mm

Hardness value read

Computer screen

Total amplification

80X

Load method

Automatic(load, dwell, unload)

Specimen maximum height allowed

220mm

Throat depth

120mm

Instrument size and weight

530×187×758mm (L×W×H)    135kg

Package size and weight

625x430x950mm (L x W x H)   149kg

Dwell time

1~99S  each step is 1 second

Power supply

AC220V 5%, 50~60 Hz, AC110V available

Data output

The test data automatic generation Word, Excel format report, print A4 report, save the image JPG/BMP format .

Executive standard

GB/T231.2  ASTM E10, ISO6506, JJG150

Standard accessories

1 piece:

HBE-3000M hardness tester ;Φ2.5,Φ5,Φ10mm harden alloy indenter ; big, medium and “V” test table; wrench; fuse; power cable; accessory box; dust-proof cover; hardness measurement software CD; portable microscope; dongle; data cable ; manual instruction; certificate of quality and warranty card; hardness conversion table.

2 pieces:

Standard hardness block

Optional

Brand computer and printer; standard indenter; standard hardness block
